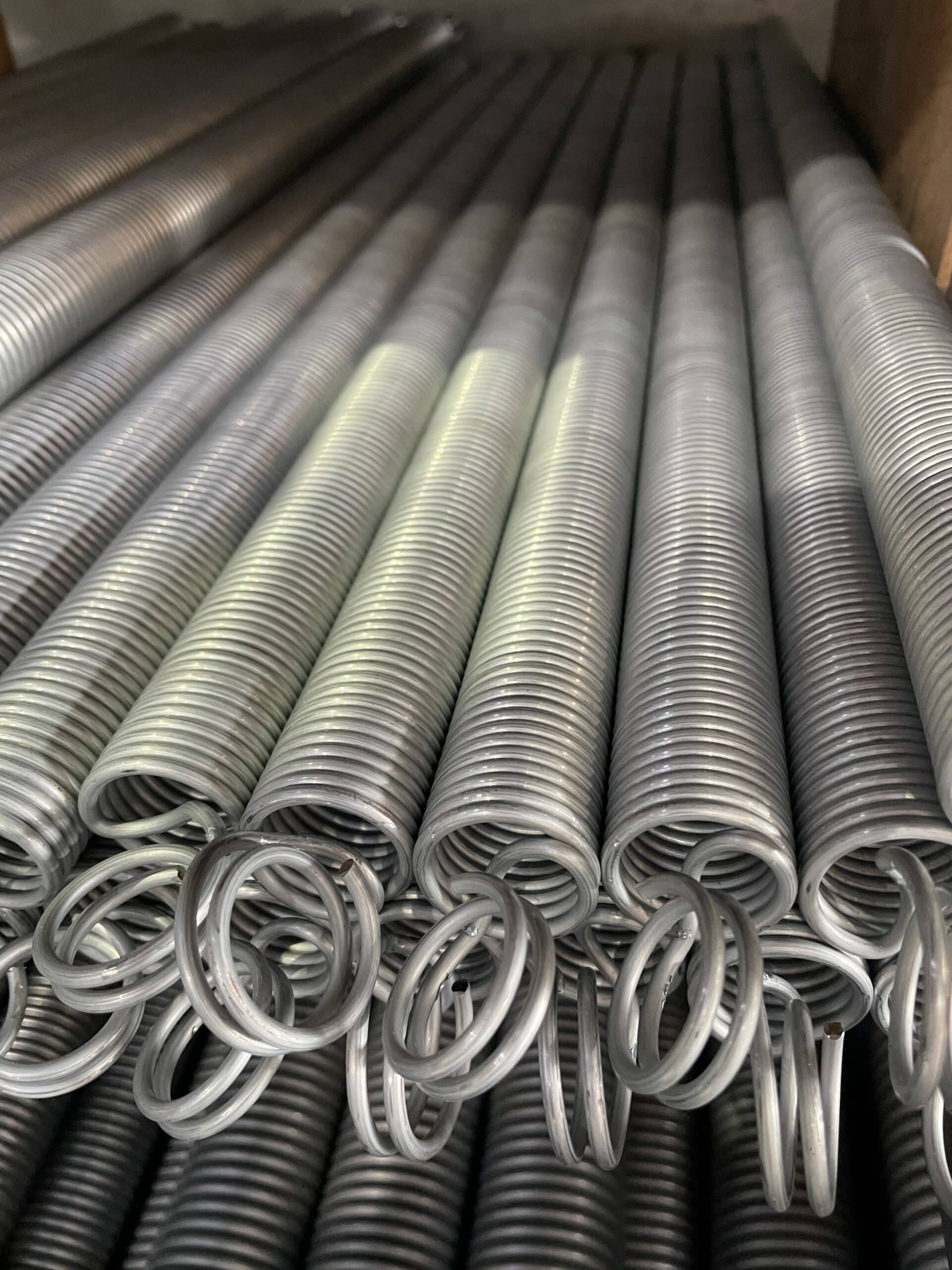

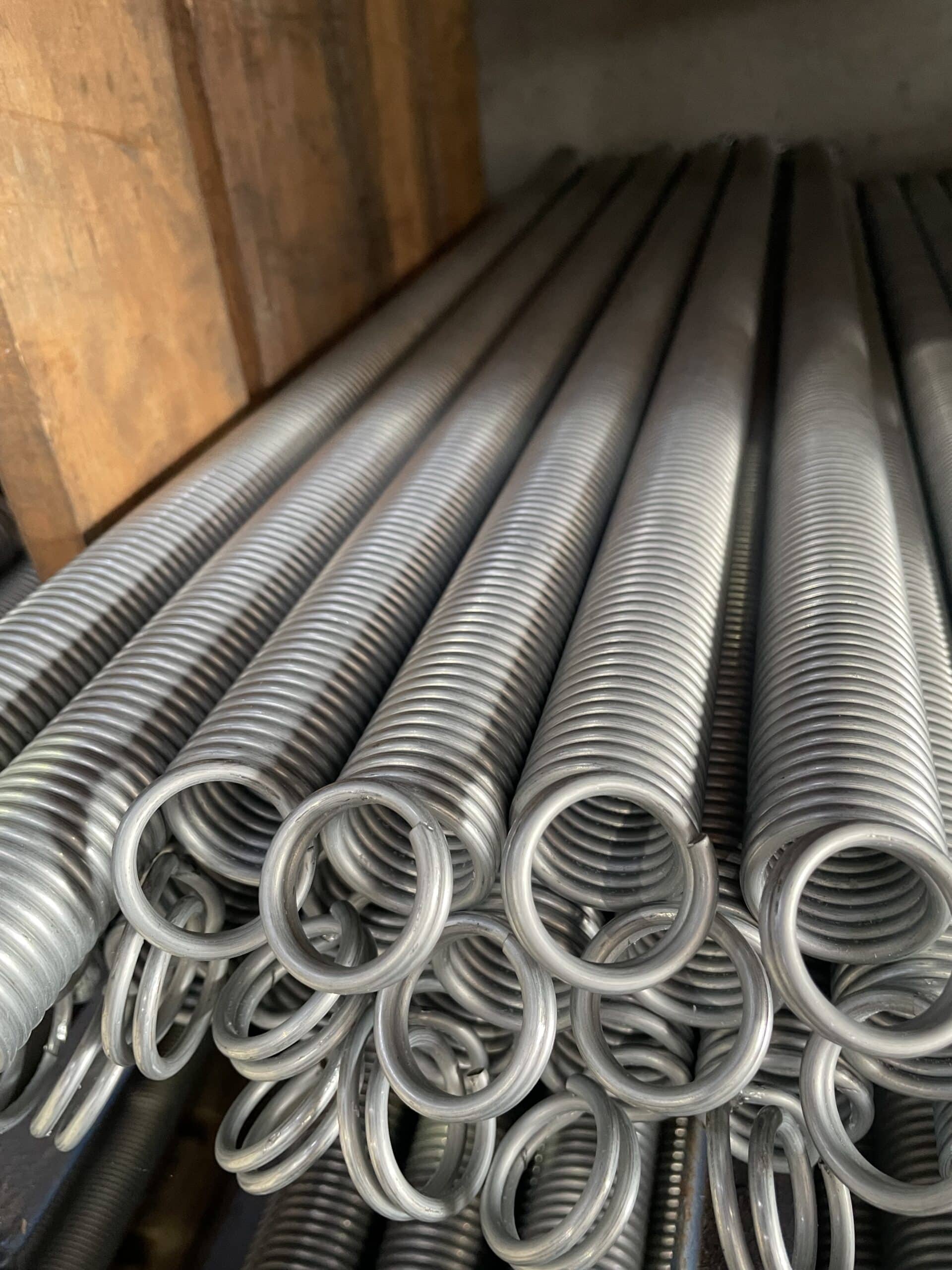

Replacements for your Glideaway Side Springs
Side sprung Sectional garage doors use extension springs (Side Springs) which stretch as the weight is applied by the cable attached to the door. The springs have a pitched loop one end to assist attaching the cable reel.
One end is typically attached to a fixed point and the pitched loop on the other end is attached to the door via the cable reel.
Standard sectional garage door side spring size ranges we keep in stock:
Wire Size range: 2.80 – 5.0 mm
Outside Diameter: 27mm – 47mm
Body Length: 690mm
Part numbers: 110533 – 20Kg-H188, 110534 – 40Kg-H189, 110535 – 55Kg-H190, 110536 – 70Kg-H191
